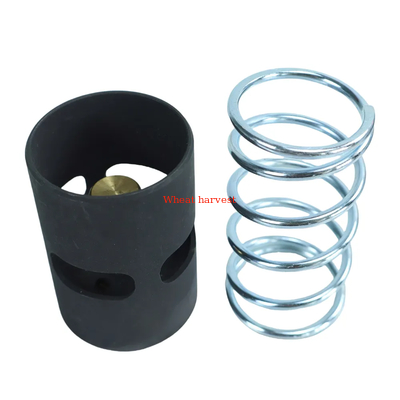

CompAir A11513574 Temperature Control Valve Core 50°C Max
  • 이름
  • 이름
  • 이름
  • 이름
  • 이름
  • 이름

CompAir A11513574 Temperature Control Valve Core 50°C Max

MOQ: 1
가격: USD22/pcs
배달 기간: 15-20Work 일
지불 방법: t/t
공급 능력: 100-1000
자세한 정보
제품 설명
자세한 정보
원래 장소
중국
브랜드 이름
Compair
모델 번호
A11513574
강조하다:

CompAir temperature control valve core

,

air compressor valve core 50°C

,

CompAir A11513574 valve core

제품 설명
Temperature Control Valve Core A11513574
High Quality Screw Air Compressor Parts
Product Introduction
The Temperature Control Valve Core is the essential internal component of a thermostatic mixing or diverting valve, responsible for precisely regulating fluid temperature by dynamically blending hot and cold incoming streams or controlling flow through a heat exchanger.
Key Functions & Purposes
  • Precise Temperature Control: Maintains a constant, desired outlet temperature
  • Thermal Shock Prevention: Protects users and equipment from sudden temperature surges
  • Energy Efficiency: Optimizes energy usage by using only necessary heated fluid
  • Safety Limiting: Includes maximum temperature stop features
  • Anti-Scald Protection: Critical for showers, baths, and handwashing stations
Operating Principle
  1. Sensing: Temperature-sensitive element responds to outlet water temperature
  2. Actuation: Generates linear force through expansion/contraction
  3. Modulation: Adjusts ports for hot and cold inlets
  4. Feedback Loop: Continuously self-adjusts to maintain set temperature
  5. Equilibrium: Maintains stable outlet temperature
Key Features & Benefits
Feature Benefit
Self-Actuating Requires no external power, ensuring reliability and simplicity
Proportional Control Provides smooth, modulating control for precise temperature stability
Integrated Temperature Limiter Adjustable or fixed maximum temperature stop to prevent scalding
Responsive Thermal Actuator Fast response to temperature changes
Rugged Construction Corrosion-resistant materials withstand scale and debris
Easy Maintenance & Replacement Standardized cartridge design for quick replacement
Common Types of Valve Cores
Type Description Primary Application
Thermostatic Mixing Valve (TMV) Core Blends hot and cold water to set outlet temperature Point-of-use water temperature control
Diverting Valve Core Directs flow based on temperature HVAC systems, radiator control
Pressure-Balancing Only Cartridge Maintains constant volume ratio Basic anti-scald protection
Technical Specifications
  • Temperature Range: Adjustable range (e.g., 30°C - 50°C)
  • Flow Rate: Maximum recommended flow (e.g., 10-15 L/min)
  • Pressure Rating: Maximum operating pressure (e.g., 10 bar)
  • Inlet Pressure Differential Limit: Maximum allowed difference between hot and cold inlets
  • Connection Type: Standardized housing design
  • Wetted Materials: Brass, stainless steel, EPDM seals, PTFE guides
Industries & Applications
  • Plumbing & Hospitality: Showers, bathtubs, and faucets
  • Healthcare & Senior Living: Essential for patient safety
  • HVAC: Radiant floor heating, fan coil units
  • Industrial Processes: Process water temperature regulation
  • Food & Beverage: Sanitation and production processes
Why Choose Our Temperature Control Valve Cores?
  • Certified Safety & Performance to international standards
  • Superior Reliability & Longevity with precision engineering
  • Precise Temperature Control (±1°C) even with varying conditions
  • OEM Compatibility & Interchangeability with major brands
  • Expert Technical Support for selection and application
Ordering Information
To select the correct temperature control valve core, please provide:
  • Valve Manufacturer & Model
  • Application (e.g., Shower Valve, Point-of-Use Mixing Valve)
  • Required Temperature Range/Set Point
  • Flow Rate & Pressure Requirements
  • Material Compatibility Needs
Contact our technical experts today to find the exact replacement temperature control valve core you need.
